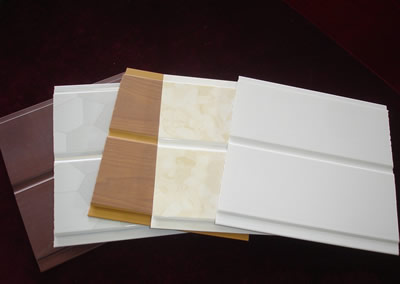

| PVC ceiling panel ( Melic®) |
| |
|
PVC ceiling panel ( Melic®) |
|
|
|
|
|
Thickness:
7.5mm/ 6mm/ 4.5mm/8mm
Width:
200mm/250mm/300mm
Length:
5.95m, Depends on your requirement
Surface finish:
Printing, hot stamping, lamination
Application:
Conference Rooms
Material:
PVC Resin
Weight:
1.6kg/sqm-4kg/sqm
|
|
|
Technical data: |
|
No.
|
Test Items
|
Technical Requirements
|
Detection Result
|
Single Judge
|
|
1
|
Appearance
|
|
Fulfill
|
Qualified
|
|
2
|
Flexibility mm/m
|
<1.5mm/m
|
0.48
|
Qualified
|
|
3
|
Thickness mm
|
Faceplate
|
>0.4
|
0.4
|
Qualified
|
|
Base plate
|
>0.3
|
0.32
|
|
|
4
|
Heating Rate %
|
<6.0
|
0.6
|
Qualified
|
|
5
|
Heated State
|
No bubble, craze or spot
|
Fulfill
|
Qualified
|
|
6
|
Resistance of acetone
|
No defects
|
Fulfill
|
Qualified
|
|
7
|
Dart drop impact
|
0.25kg/0.5m,10 times, Pass when keep unbroken above 6 times
|
pass
|
Qualified
|
|
8
|
Size Variation in High/Low Temperature
|
±0.6%
|
-0.16
|
Qualified
|
|
9
|
Nail resistance
|
no visible cracks
|
Indehiscent
|
Qualified
|
|
|
|
|
